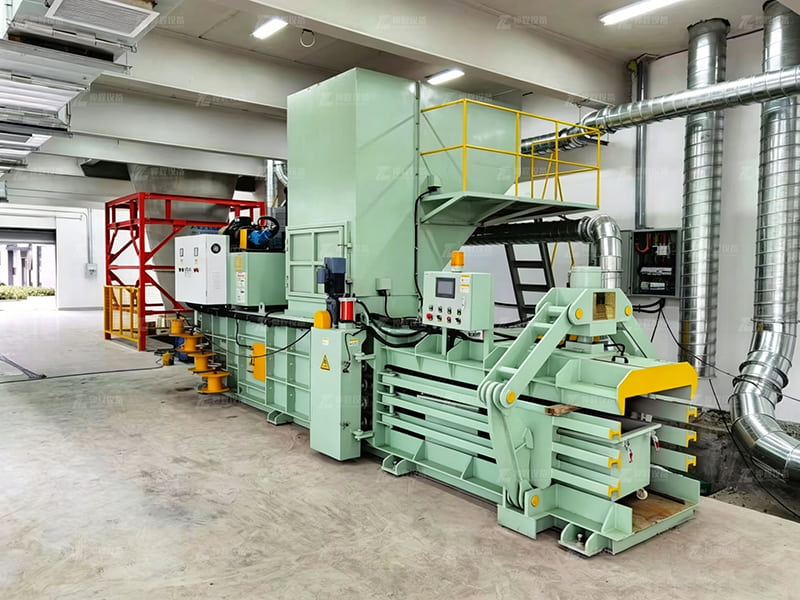

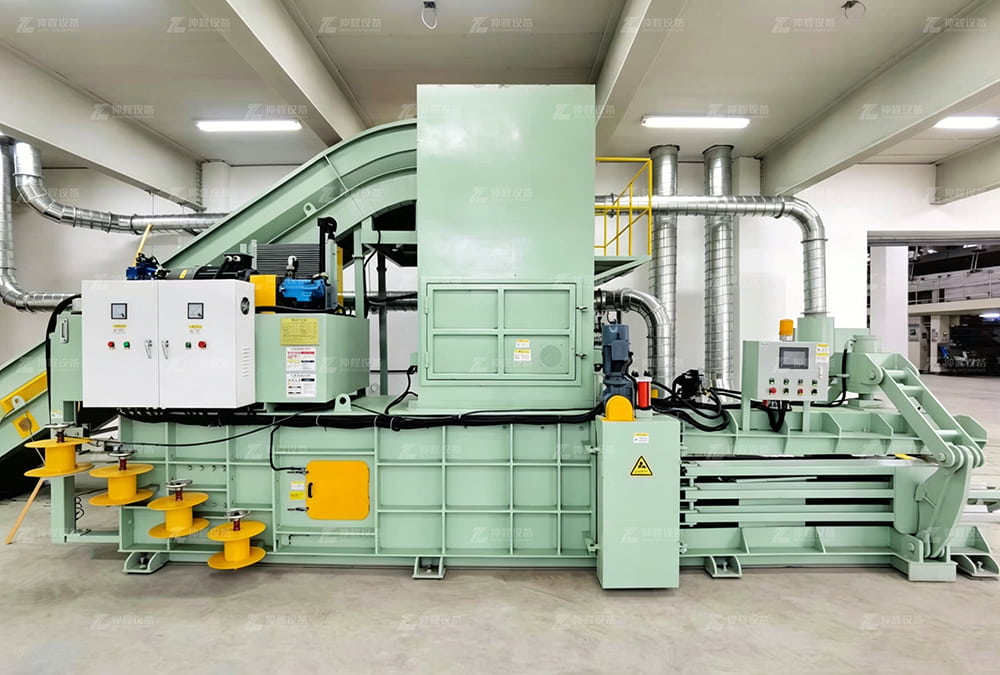

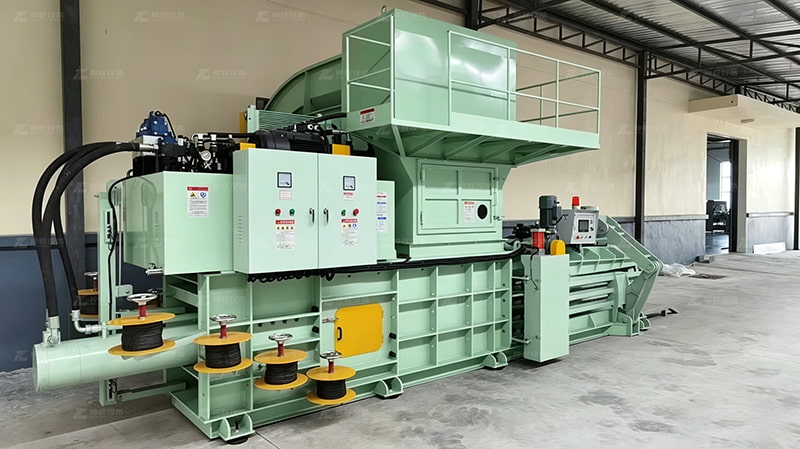

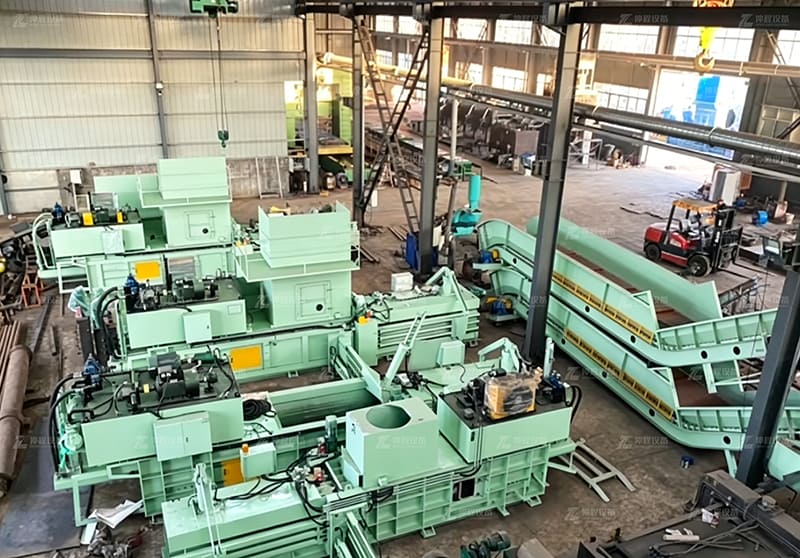

Automatic Horizontal Baler
Municipal Solid Waste Treatment Equipment
What is a Automatic Horizontal Baler?

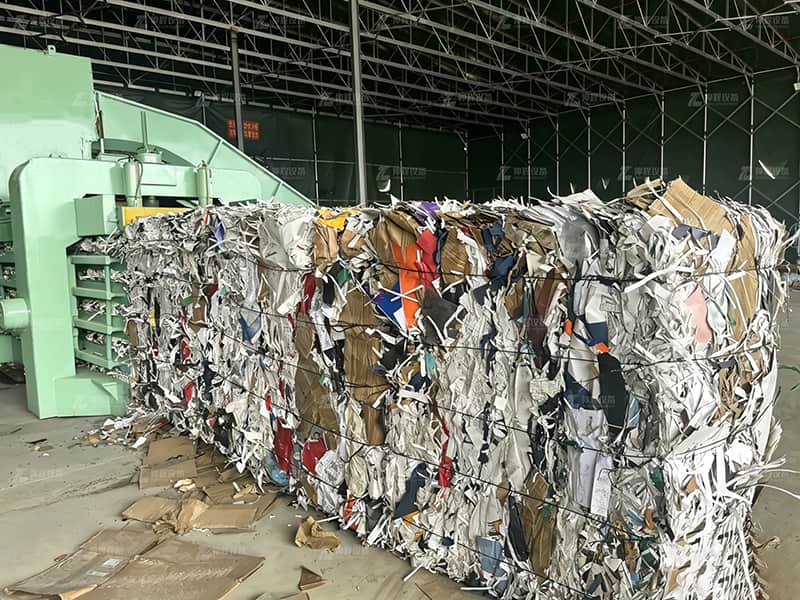

An Automatic Horizontal Baler is a heavy-duty industrial machine designed to streamline waste management by compressing large volumes of recyclable materials—such as cardboard, paper, and plastics—into dense, uniform blocks known as bales. Because they can automatically tie off finished bales and eject them without human intervention, they are highly efficient tools for large-scale recycling centers and distribution hubs looking to maximize storage space and reduce transportation costs.
Product Details of Automatic Horizontal Baler
The Scope of Application for the Automatic Horizontal Baler is extensive, primarily targeting high-volume industrial and commercial environments where manual waste handling is inefficient. These machines are essential in large-scale recycling centers, distribution warehouses, and logistics hubs for processing massive quantities of OCC (old corrugated containers), paper, and plastic films. They are also widely utilized in the printing and packaging industry to manage scrap trimmings, as well as in manufacturing plants that generate consistent streams of textile waste, aluminum cans, or foam scrap. By converting loose, bulky debris into dense, transportable units, the equipment serves any facility requiring continuous, automated waste reduction to streamline logistics and maximize the market value of recyclable materials.
Performance features:
- High-Pressure Hydraulic System: Utilizes heavy-duty cylinders and high-performance pumps to deliver immense pressing force, ensuring maximum bale density and weight for efficient shipping.
- Fully Automated Operation: Integrated PLC (Programmable Logic Controller) systems and infrared sensors allow the machine to detect material levels and cycle automatically, eliminating the need for constant manual supervisio
- Automatic Tying Mechanism: Features a high-speed auto-tier that wraps and knots wires or plastic straps around the bale once it reaches the desired length, significantly reducing labor intensity.

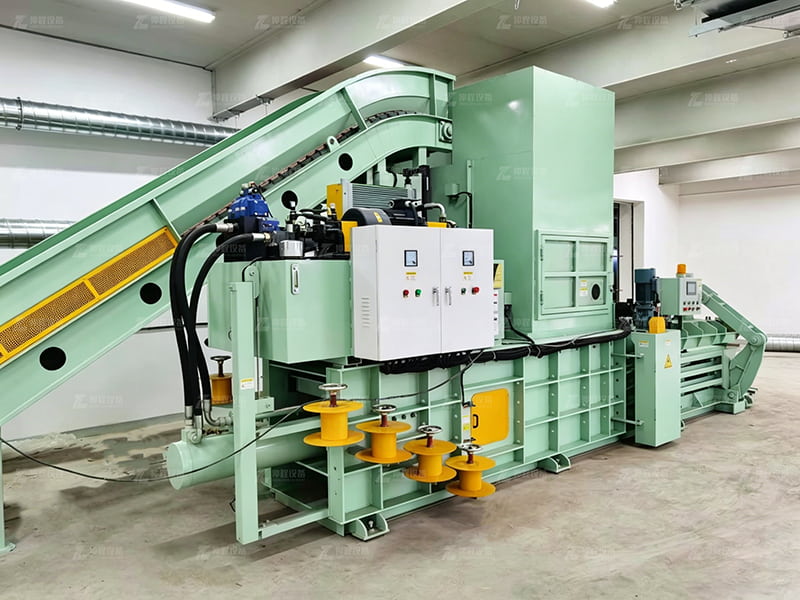

- Continuous Feeding Compatibility: Designed with a large, open hopper that integrates seamlessly with conveyor belts, air-extraction systems, or forklifts for non-stop material processing.
- Robust Structural Durability: Constructed with high-strength, wear-resistant steel plates and reinforced welding to withstand the rigorous demands of 24/7 industrial waste management.
- Variable Bale Sizing: Allows operators to adjust the bale length and tension settings via a touch-screen interface to meet specific storage requirements or transportation standards.
- Safety & Energy Efficiency: Equipped with emergency stop interlocks and energy-saving motors that reduce power consumption when the machine is in idle or standby mode.
Characteristics of Automatic Horizontal Baler
Powerful Hydraulic Drive
Features a sophisticated hydraulic circuit with high-pressure pumps and precision valves that provide smooth, consistent force, ensuring uniform overall packing density.
Heavy-Duty Reinforced Frame
The machine is built with thick, higher-grade steel and manganese wear-plates in high-friction areas to prevent deformation under extreme
Intelligent PLC Integration
Equipped with a central control unit （typically Siemens or Mitsubishi）and a HMI touch screen, allowing for real-time monitoring, fault self-diagnosis, and precise pressure adjustments.
High Level of Automation
Many models include automatic bale-tying systems and tensioning gates that automatically adjust the resistance of the exit channel to maintain consistent bale weight regardless of the material type
Space-Efficient Logistics
Designed to produce high-density bales that perfectly fit the dimensions of standard shipping containers or truck beds, significantly reducing the carbon footprint and cost of waste transport.
Modular Feeding Options
Highly adaptable to various industrial setups, it can be equipped with conveyors, hoppers, or pneumatic cyclone separators to match the facility’s specific workflow.
Applications of Automatic Horizontal Baler
The Applications of Automatic Horizontal Baler are diverse, primarily focused on industries that generate high volumes of waste and require efficient, automated recycling solutions.
Common applications include:
- Recycling & Waste Management Centers: Used as the primary tool for processing large-scale collections of cardboard (OCC), mixed paper, and plastic containers for resale to mills.
- Logistics & Distribution Hubs: Essential for warehouses (like Amazon or grocery chains) to handle the massive influx of shipping boxes and packaging film from daily operations.
- Manufacturing & Industrial Plants: Employed on production lines to manage scrap materials such as textile trimmings, aluminum cans, foam, and various fiber byproducts.
- Paper & Printing Industry: Integrated directly with production machinery to capture and bale paper offcuts, shavings, and shredded documents.
- Retail & Supermarket Chains: Used at regional distribution points to consolidate back-of-store waste from multiple retail locations into transportable units.
- Agricultural Operations: Applied in specific contexts for baling large quantities of straw, hay, or silage for easier storage and animal feed logistics.
By densifying these materials, the automatic horizontal baler help businesses across these sectors turn a bulky waste problem into a streamlined, revenue-generating recycling stream.
Benefits of Using Automatic Horizontal Baler
Implementing Horizontal Hydraulic Baler Machine in waste sorting processes offers numerous benefits:
- Continuous High-Volume Processing：Features a horizontal feed hopper that allows for non-stop, automatic feeding (via conveyors), making it ideal for high-production facilities handling massive volumes of waste or recyclables (e.g., cardboard, plastic, paper).
- Superior Baling Force & Density：Utilizes powerful hydraulic cylinders to generate immense compaction pressure, producing denser, heavier bales than vertical models. This maximizes truckload efficiency, drastically reducing transportation and storage costs.
- Ergonomic & Safe Operation：Eliminates the need for manual lifting and feeding at high heights. Operators can feed materials at ground level, reducing workplace injuries. Advanced safety features (e.g., emergency stops, safety sensors) further protect personnel.
- Versatility & Automation Compatibility：Easily integrates with existing conveyor systems and automated sorting lines. Available with a wide range of chamber sizes and customizable options (ejectors, auto-tie systems) to handle diverse materials, from soft plastics to rigid industrial scrap.
Parameters of Automatic Horizontal Baler
| ZC100 | ZC125 | ZC160 | ZC200 | ZC250 | |
|---|---|---|---|---|---|
| Feeding hopper size | 1050x1100mm | 2000x1100mm | 2000x1100mm | 2200x1100mm | 2200x1100mm |
| Hydraulic power(T) | 100T | 125T | 160T | 200T | 250T |
| Hourly output | 6-8 packs | 8-10 packs | 10-12 packs | 10-12 packs | 12-14 packs |
| Package size | 1100*850*1500mm | 1100*850mm *length adjustable | 1100*1250mm *length adjustable | 1100*1250mm *length adjustable | 1100*1250mm *length adjustable |
| Machine weight | 9T | 15T | 15T | 22T | 27T |
| Feed port | 1500*1100 | 2000*1100 | 2000*1100 | 2200*1100 | 2200*1100 |
| Width | 1500mm | 1500mm | 1500mm | 1500mm | 1500mm |
| Cooling Tower | Water cooling | Water cooling /air cooling | Water cooling /air cooling | Water cooling /air cooling /oil cooler | Water cooling /air cooling /oil cooler |
