Shaftless Screw Conveyor

Working Principle of Shaftless Screw Conveyor

Operational Mechanism of Shaftless Screw Conveyor

The shaftless screw conveyor operates on a direct drive, drag principle, designed to overcome the challenges of handling difficult materials.

Here’s a concise breakdown:

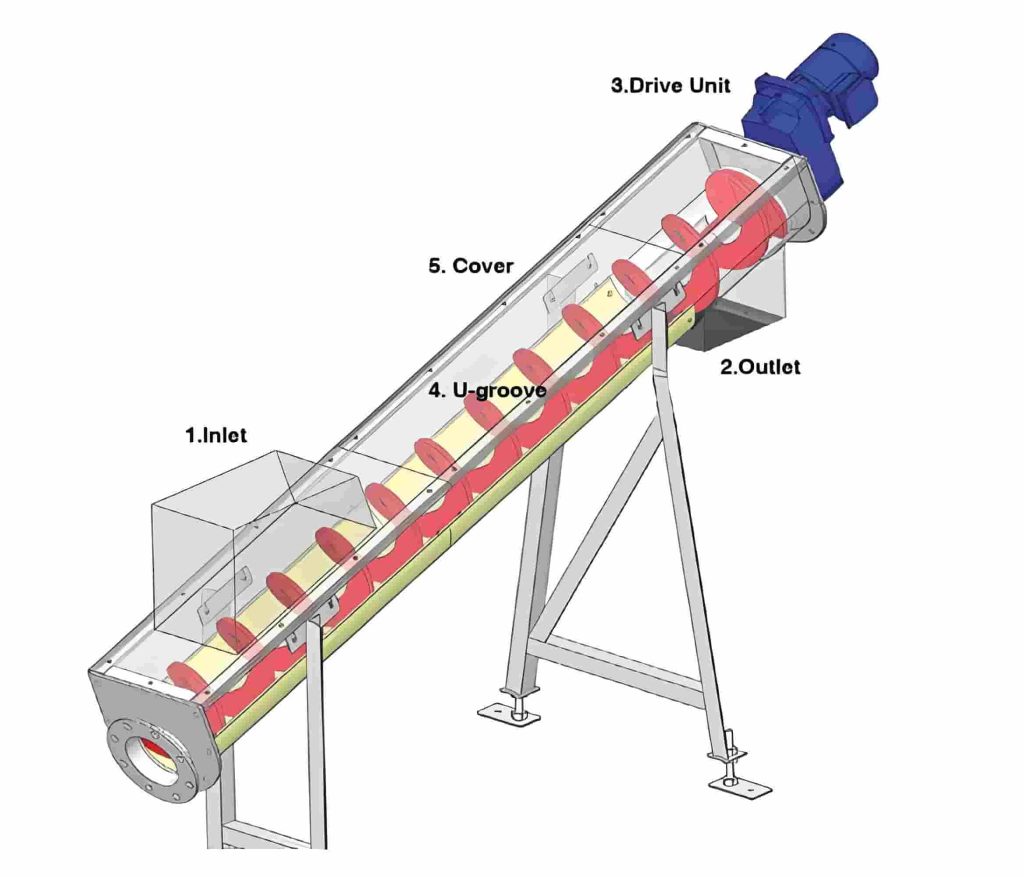

• Initiation: A motor and gear reducer drive a continuous, shaftless spiral flight (helix) that rotates within a fixed trough (U-shaped or enclosed tube).
• Material Movement: Unlike shafted conveyors that rely on pushing, the rotating flight drags materials along the trough’s inner surface. Friction between the material and the trough liner creates a reaction force, causing the material to rotate with the flight and move axially toward the discharge end.
• Friction Management: The trough is typically lined with UHMWPE (Ultra-High-Molecular-Weight Polyethylene). This low-friction liner minimizes resistance during material transport and protects the metal trough from wear.
• Self-Cleaning Action: The absence of a central shaft and hanger bearings eliminates common points for material buildup. The continuous spiral sweep ensures smooth flow, even for sticky, wet, or fibrous materials that tend to wrap around shafts in traditional models.
• Variable Control: Speed controllers adjust the rotation rate to precisely regulate throughput, adapting to different material consistencies and process requirements.

Benefits of Using Shaftless Screw Conveyor

• Exceptional Material Versatility：Excels at conveying sticky, wet, or fibrous materials (e.g., sludge, food waste, biomass) that typically jam or wrap around the central shaft of traditional conveyors. The shaftless design eliminates buildup points.
• Maximized Throughput & Efficiency：The open spiral design utilizes up to 30% more of the trough volume compared to shafted models. This unobstructed cross-section allows for higher flow rates and reduced material compression.
• Reduced Maintenance & Downtime：With no central shaft, hanger bearings, or associated bushings, there are fewer moving parts to wear out or replace. This results in lower servicing costs and increased operational uptime.
• Sanitary & Easy Cleaning：The smooth, continuous spiral and trough (often lined with UHMWPE) leave no crevices for bacteria or material residue. This makes it ideal for food, pharmaceutical, and wastewater applications requiring high hygiene standards.
• Space-Saving & Flexible Design：Its compact footprint and ability to operate at steeper inclines (up to 30°) allow for flexible installation in tight spaces. Direct drive systems also simplify integration into existing processing lines.
