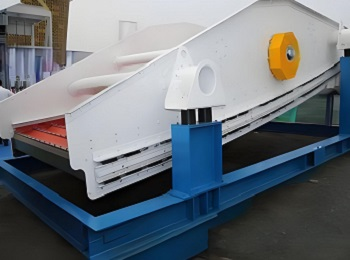

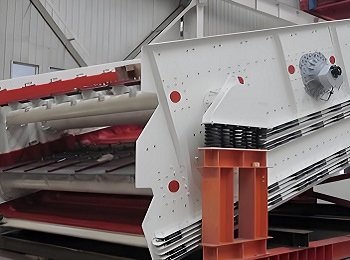

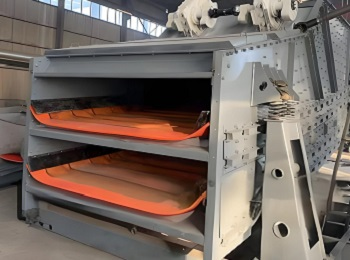

Flip-Flow Screen

Working Principle of Flip-Flow Screen

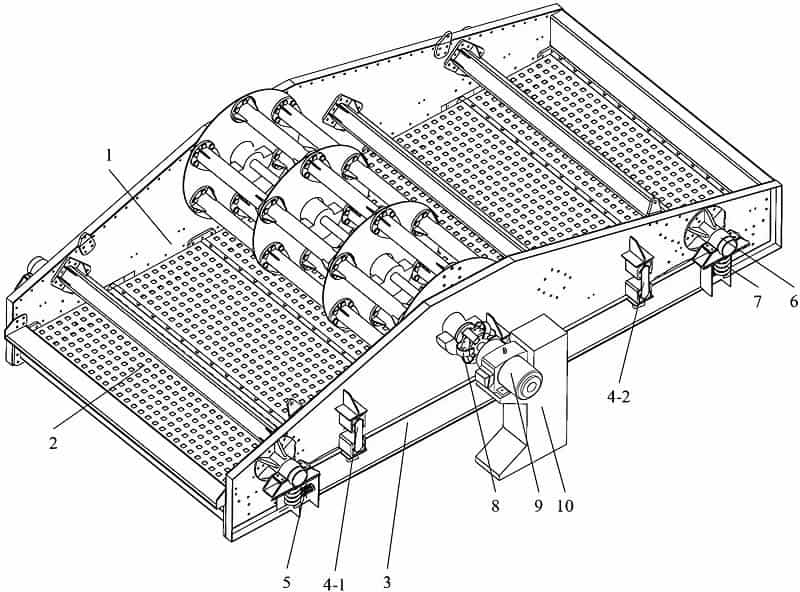

Operational Mechanism of Flip-Flow Screen

The working principle of the relaxation screen mainly relies on the tension and vibration of the screen mesh to achieve material screening.

Specifically, the relaxation screen works through the following steps:

Apply tension: The mesh of the relaxation screen is fixed on a frame, and tension is applied through a tensioning device to create a certain tension on the surface of the mesh. This tension facilitates the movement and separation of solid particles on the sieve.

Solid liquid feeding: The material (usually a solid-liquid mixture) enters the screen area through the feeding port, and the solid particles are blocked by the screen mesh, while the liquid flows into the collection tank below through the pores of the screen mesh or is discharged through the discharge port.

Screening process: Under the action of screen tension, solid particles begin to be screened. Particles of different sizes form different layers on the sieve, with smaller particles falling through the pores and larger particles remaining above the sieve.

Solid liquid separation and collection: Through the screening process, solid particles and liquids are effectively separated. The separated solid particles and liquids are collected separately through collection tanks or sewage outlets for further processing or use.

In addition, certain types of relaxation screens (such as vibration relaxation screens) also utilize the high-speed rotational excitation force generated by vibration motors to continuously vibrate the screen body up and down, which helps to remove moisture from the material, achieve better dehydration effect, and enhance the efficiency and processing capacity of screening. ‌

Applications of Flip-Flow Screen

Within the waste management industry, Flip Flop Screens are indispensable in Material Recovery Facilities (MRFs) and Mechanical Biological Treatment (MBT) plants. Their primary application is size-based separation after initial waste processing. For instance, after municipal solid waste has been pre-shredded and bags have been opened, the entire mix is fed to a Flip Flop Screen. Here, it performs a critical task: separating the fine, often wet, organic fraction (fines) from the larger, drier recyclable materials. The undersize fraction, rich in organic material, can be sent for composting, anaerobic digestion, or landfilling, while the cleaner, oversized fraction proceeds to a series of advanced sorters like magnets, eddy current separators, optical sorters, and AI robots to recover plastics, metals, and paper.

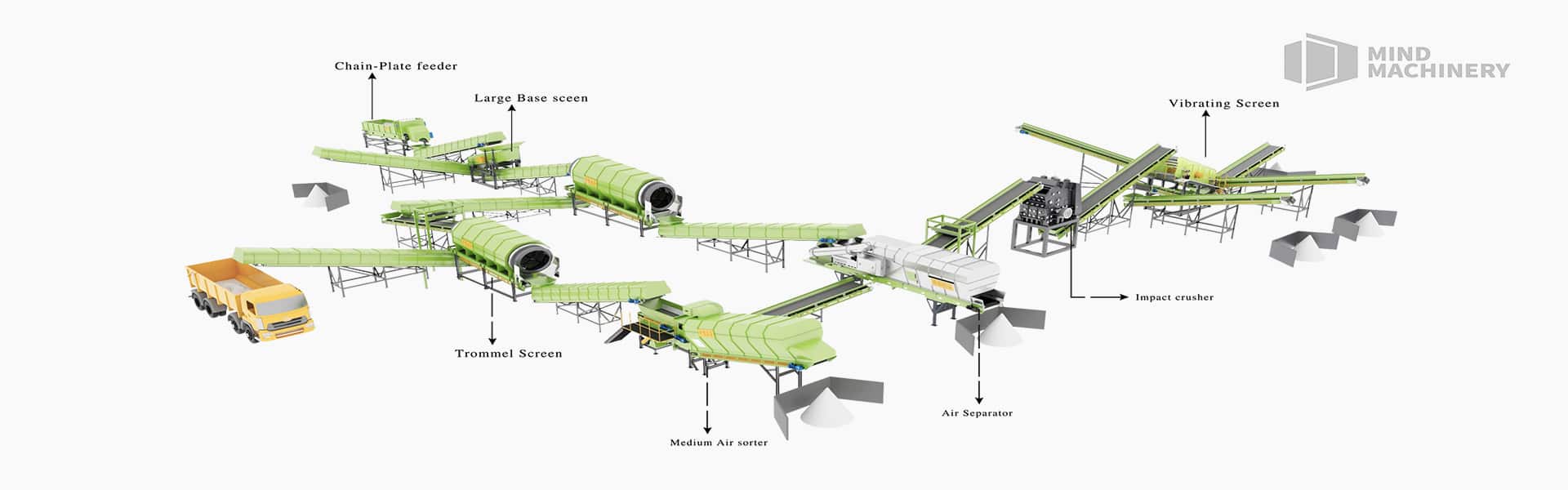

Beyond standard MRFs, Flip Flop Screens are also vital in processing specific waste streams. They are highly effective in Construction and Demolition (C&D) waste recycling plants for separating fine soil and rubble from larger wood, metal, and plastic pieces. In commercial and industrial waste sorting lines, they handle mixed packaging waste. Furthermore, in composting facilities, they are used to screen out oversized, non-compostable contaminants from the finished compost product. Their ability to handle damp, sticky materials without clogging makes them the preferred choice over trommel screens or traditional vibrating screens in many applications where material moisture content is variable or high.

Benefits of Using Flip-Flow Screen

Implementing Flip-Flow Screen in material separation processes offers numerous benefits:

• Minimized Downtime: The self-cleaning action of flexible panels drastically reduces screen blinding and clogging, cutting down on maintenance stops.
• Superior Product Quality: Delivers precise sizing with high throughput, even for sticky, wet, or fibrous materials, ensuring cleaner end products.
• Reduced Operating Costs: Lower maintenance requirements and durable polyurethane screens result in fewer replacements and less manpower spent on cleaning.
• Gentle Material Processing: Preserves the integrity of fragile or valuable materials (e.g., recycled glass, coal) with minimal degradation during screening.
• Versatile Application: Highly adaptable to diverse waste streams and difficult-to-handle materials, making it ideal for complex recycling and waste sorting lines.

Parameters of Flip-Flow Screen
