View detailsBallistic Separator
Discover the benefits and applications of ballistic separators in waste management and recycling. Learn how ballistic separators enhance the efficiency and accuracy of material sorting.

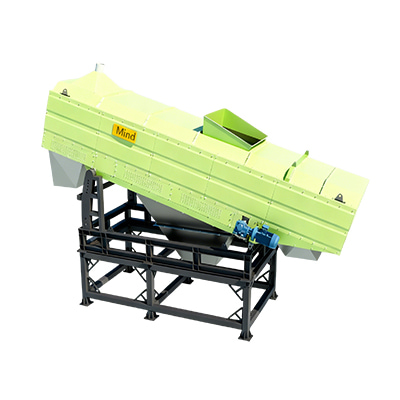

What is a Ballistic Separator?
Ballistic Separator is an advanced piece of equipment used in waste sorting to separate materials based on their physical properties, such as shape, size, and density. Waste Ballistic Separator uses a series of paddles or plates that move in an oscillating motion to classify waste into different fractions. The separator typically sorts materials into three main categories:
- Rolling Fraction (3D waste): Objects like bottles, cans, and other rigid materials that roll or bounce.
- Flat Fraction (2D waste): Flat items such as paper, cardboard, and film plastics that tend to stay on the surface.
- Fines waste: Small particles like broken glass, dirt, and other small debris that fall through the perforated plates or screens.
Product Details of Ballistic Separators
High-Efficiency Ballistic Separators for Waste Recycling Centers
Our ballistic separators are the ultimate solution for waste management and recycling industries, designed to separate materials based on their density, shape, and size through precise ballistic movement. This advanced equipment ensures efficient and effective sorting, reducing manual intervention and enhancing recycling rates.
Key Features
- Rotating Paddles: Propel materials along the separator, creating different trajectories based on material properties.
- Angled Deck: Ensures effective separation by leveraging gravity and material dynamics.
- Adjustable Settings: Allows customization of the separator for different types of waste materials.
- Durable Construction: Built with high-quality materials to withstand continuous operation in harsh environments.
- Low Maintenance: Designed for easy access and minimal maintenance, reducing downtime and operational costs.
Video Introduction of Ballistic Separators
High-Efficiency Ballistic Separators for Waste Recycling Centers
Our ballistic separators are the ultimate solution for waste management and recycling industries, designed to separate materials based on their density, shape, and size through precise ballistic movement. This advanced equipment ensures efficient and effective sorting, reducing manual intervention and enhancing recycling rates.

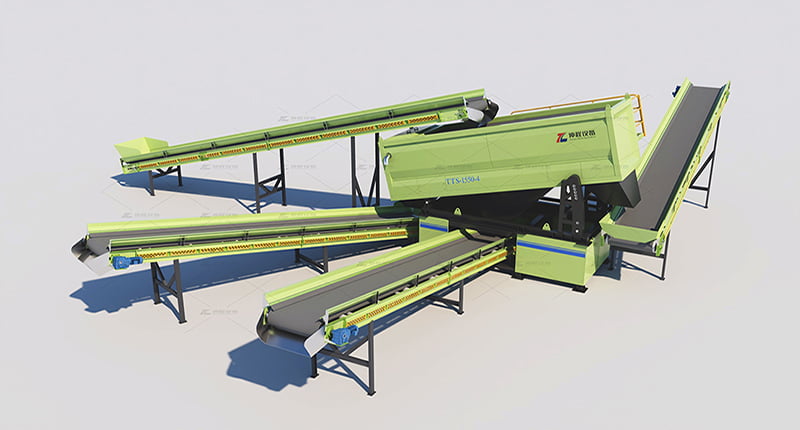

Key Components of a Ballistic Separator
- Infeed Conveyor：The infeed conveyor is responsible for transporting mixed waste to the separator. This component ensures a steady and controlled flow of materials into the machine, which is essential for maintaining efficiency and consistency in the sorting process.
- Oscillating Deck：The oscillating deck is the heart of the ballistic separator. It is here that the actual separation occurs. The deck oscillates to create a ballistic movement, which sorts materials based on their physical properties
- Paddles：Mounted on the oscillating deck, the paddles provide the necessary motion to separate materials. These paddles are critical for creating the ballistic movement that differentiates materials by density, shape, and size.
- Fraction Discharge Points：The sorted materials are collected at different fraction discharge points. These points ensure that 2D and 3D materials are separated into distinct streams, allowing for efficient processing and recycling.
Characteristics of Ballistic Separators
High efficiency
Efficiency One of the primary benefits of ballistic separators is their efficiency. These machines are capable of processing large volumes of material quickly, significantly reducing the need for manual sorting. This efficiency translates to lower operational costs and higher throughput, making ballistic separators an essential component in modern recycling facilities
Incredibly versatile
Versatility Ballistic separators are incredibly versatile, effective for a wide range of materials. They can handle various waste streams, including municipal solid waste （MSW）commercial waste, and recyclables such as plastics, metals, and paper. This versatility ensures that recycling centers can adapt to different types of waste without needing multiple sorting systems.
Automation
Integrating ballistic separators into automated sorting systems further enhances their value. Automation reduces the need for manual labor, decreases human error, and increases the overall efficiency of the recycling process. This integration is especially beneficial in large-scale operations where consistency and speed are critical.
Enhanced Recycling Rates
By providing a cleaner separation, ballistic separators improve the quality of recycled materials. This enhancement leads to higher recycling rates, as more materials are correctly sorted and processed. Cleaner output also means that the final recycled products are of higher quality, which is crucial for meeting industry standards and market demands.
Working Principle of Ballistic Separators
Operational Mechanism of Ballistic Separators
- Feeding Material：Mixed waste or recyclable materials are fed onto the inclined plane of the ballistic separator. The controlled feeding ensures that the machine operates efficiently and effectively.
- Ballistic Movement：The inclined plane is equipped with paddles that move the materials upwards. This motion creates a ballistic movement, sorting the materials based on their physical characteristics. Heavy and rolling materials (3D) like flacons, plastic bottles (PET and HDPE), and cans are separated from flat and light materials (2D) like envelopes, trays, and plastic films (LDPE).
- Sieved Fraction：Depending on the size of the holes in the screening paddles, the ballistic separator can classify different sizes of underscreen fraction. This sieved fraction typically includes soil, sand, organic waste, and small pieces of recyclables, which are usually not recoverable.
Applications of Ballistic Separators

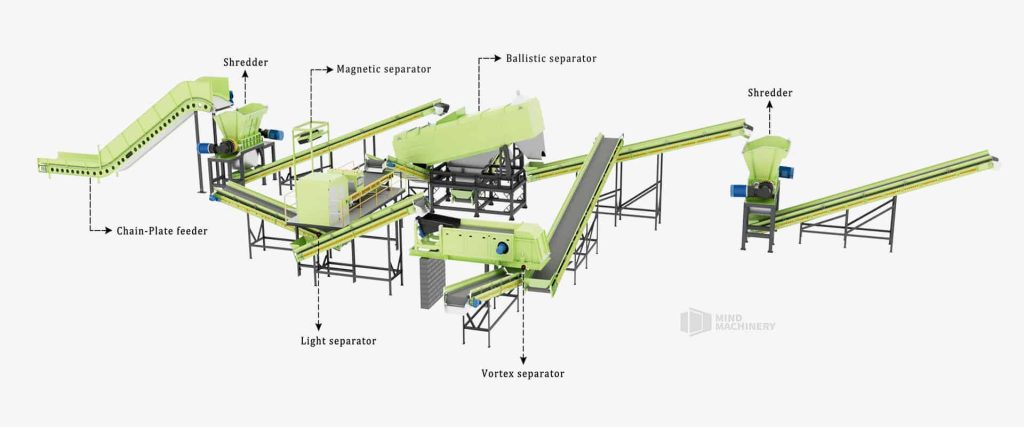

Ballistic separators are versatile and used in various industries to improve waste sorting efficiency. Common applications include:
- Municipal Solid Waste (MSW): Separating recyclables from mixed waste, enhancing recycling rates and reducing landfill use.
- Plastic Recycling: Sorting different types of plastics based on their shape and density for more effective recycling.
- Paper and Cardboard: Separating paper and cardboard from other materials in mixed recycling streams.
- Construction and Demolition Waste: Sorting debris such as wood, metal, and aggregates for recycling and reuse.
- Composting Operations: Removing contaminants from organic waste to produce high-quality compost.
Benefits of Using Ballistic Separators
Implementing ballistic separators in waste sorting processes offers numerous benefits:
- Increased Efficiency: Enhances the speed and accuracy of waste sorting, reducing manual sorting requirements.
- Improved Material Recovery: Increases the recovery rate of valuable materials, supporting recycling efforts.
- Cost Savings: Reduces labor costs and operational expenses through automated and efficient sorting.
- Enhanced Product Quality: Produces cleaner, higher-quality separated materials, improving the value of recycled products.
- Environmental Impact: Supports sustainable waste management practices by increasing recycling rates and reducing landfill usage.
Parameters of Ballistic Separators
| BS04 | BS06 | BS08 | BS10 | BBS12S12 | |
|---|---|---|---|---|---|
| Paddy Number | 4 | 4 – 6 | 4 – 6 | 4 – 6 | 4 – 6 |
| Paddle Length | 5.5m | 5.5m | 5.5m | 5.5m | 5.5m |
| Angle Adjustment | 0 – 25° | 0 – 25° | 0 – 25° | 0 – 25° | 0 – 25° |
| Sieve Hole Size | 20-80 mm | 30-80 mm | 30-80 mm | 30-80 mm | 30-80 mm |
| Fan Number | 2 – 4 | 2 – 4 | 2- 4 | 2 – 4 | 2 – 4 |
| Power | 5.5kw | 7.5kw | 11kw – 15kw | 11kw -18.5kw | 22kw |
| Throughput | 0-30 m³/h | 30-50 m³/h | 50-70 m³/h | 70-90 m³/h | 90-120 m³/h |
