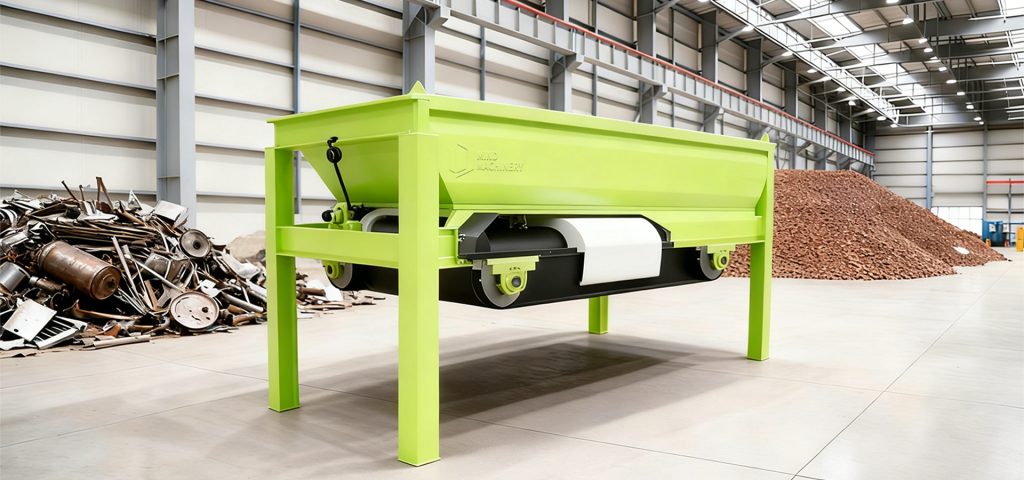

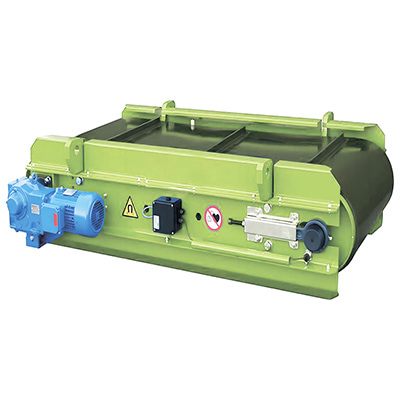

Magnetic Separator

Working Principle of Magnetic Separator

Operational Mechanism of Magnetic Separator

• Feeding: The mixed material enters the separator evenly.
• Magnetic Attraction: Magnetic particles are pulled onto the separator’s surface (e.g., drum) by the magnetic field; non-magnetic particles flow straight through.
• Transport: The rotating surface carries the trapped magnetic particles away from the main material stream.
• Discharging: Magnetic particles are released and collected separately once they leave the magnetic field area.

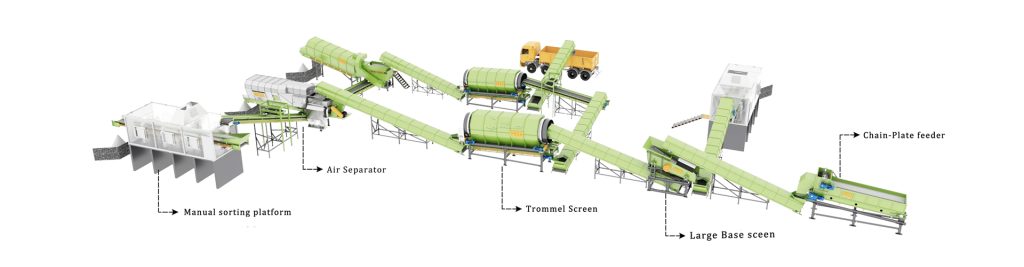

The Trommel Screen is mainly composed of a screen box, a motor, a reducer, a drum, and a bracket. The material enters the screening box from the feeding port, and the drum begins to rotate. The material continuously flips and rolls inside the drum, thus achieving the screening of the material.

The material continuously rolls and scatters inside the cylinder as it rotates, and gradually separates through the sieve holes under the action of gravity and centrifugal force. The size of the sieve holes can be adjusted according to actual needs to meet the screening requirements of materials with different particle sizes. Larger particles are filtered out by the mesh inside the drum, while smaller particles fall through the mesh into the discharge outlet below.

The screen mesh of a Trommel Screen is generally composed of multiple layers of screens with different aperture sizes to achieve separation of materials with different particle sizes. Meanwhile, the Trommel Screen can also adjust the speed and inclination angle of the drum as needed to meet the screening requirements of different materials.

Applications of Magnetic Separator

Magnetic separators are versatile and used in various industries to improve material separation efficiency.

Common applications include:

• Recycling: Removing ferrous metals from mixed waste streams to improve the quality of recycled materials.
• Mining: Extracting iron ore and other ferrous minerals from mined materials.
• Manufacturing: Ensuring product purity by removing ferrous contaminants from raw materials and finished products.
• Food Processing: Eliminating metal contaminants from food products to ensure safety and compliance with regulations.
• Construction: Separating ferrous materials from demolition waste for recycling and reuse.

Benefits of Using Magnetic Separator

Implementing trommel screens in material separation processes offers numerous benefits:

• Increased Efficiency: Enhances the speed and accuracy of material separation, reducing manual sorting time.
• Improved Product Quality: Ensures consistent and high-quality separation of materials, leading to better end products.
• Cost Savings: Reduces labor costs and increases operational efficiency, leading to overall cost savings.
• Scalability: Easily integrated into existing operations and can be scaled up as processing needs grow.
• Environmental Impact: Efficient material separation supports recycling efforts, reducing waste and conserving resources.

Parameters of Magnetic Separator

*The output will vary according to different materials, feed particle size and other factors.
