Eddy Current Separator

Enhance the efficiency and accuracy of non-ferrous metal separation

What is an Eddy Current Separator?

An eddy current separator is a device that uses a powerful magnetic field to separate non-ferrous metals, such as aluminum and copper, from other materials. This technology is widely used in recycling facilities to improve the recovery rates of valuable metals and enhance the quality of recycled materials.

Eddy Current Separator rotor spins at high speeds, an electric current is induced into conducting metals. The induced electric current produces a magnetic field, which opposes the field created by the rotor, repelling the conducting metals over a pre-positioned splitter plate. The remaining materials such as plastics, glass and other dry recyclables will simply free-fall over the rotor, sepa-rating them from the repelled metals.

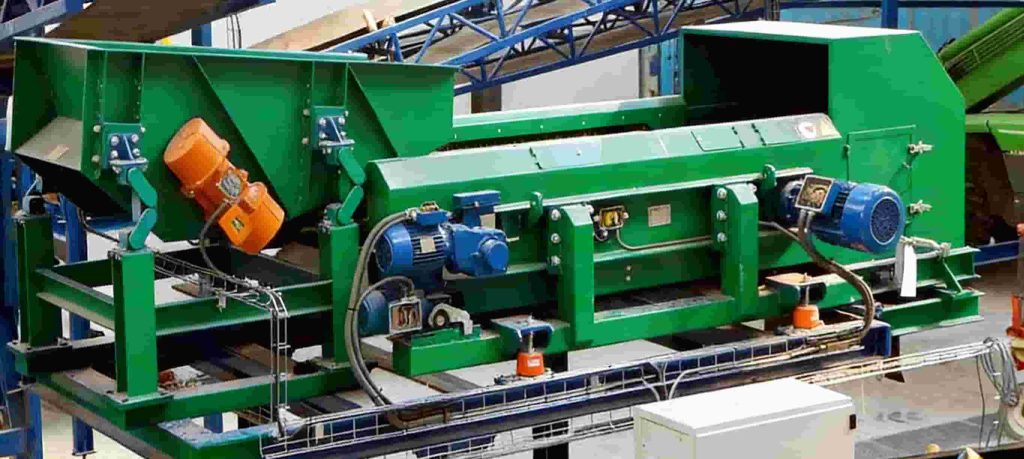

Product Details of Eddy Current Separator

High-Efficiency Eddy Current Separator for Waste Recycling Centers

Screening is a method to separate and sort recycling materials and bulk goods. designs and manufactures customized vibrating screens or vibrating sorters. We supply both linear vibratory screen and circular vibrating screens equipped with single or multiple decks

Key Features

Eddy current separators are known for their precision and efficiency. Key features include:

High-Frequency Magnetic Fields: Generate eddy currents in non-ferrous metals, causing them to be repelled from the conveyor belt and separated from other materials.
Adjustable Settings: Allow operators to fine-tune the separation process to handle different materials and particle sizes.
Robust Construction: Designed to withstand continuous operation in demanding environments.
Low Maintenance: Built with durable components to minimize maintenance requirements and operational downtime.
Energy Efficiency: Optimized for low energy consumption while maintaining high separation efficiency.

Characteristics of Eddy Current Separator

Non-Contact Separation

Uses magnetic fields to repel non-ferrous metals （aluminum, copper）, enabling material separation without physical contact.

High Throughput Efficiency

Processes large volumes of mixed waste rapidly, significantly boosting the speed of metal recovery in recycling lines.

Strong Material Selectivity

Precisely targets and extracts non-ferrous metals from complex waste streams, leaving other materials undisturbed.

Robust & Low Maintenance

Features a durable design with minimal moving parts, ensuring stable long-term operation and low upkeep costs.

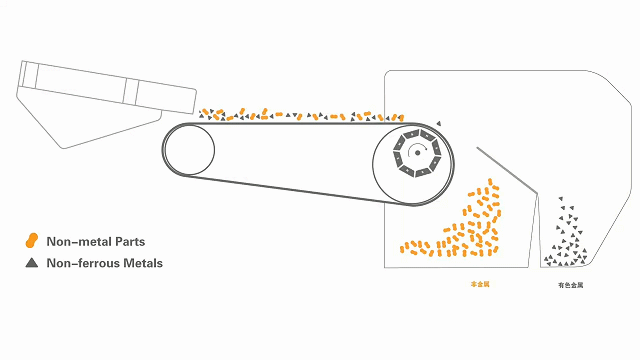

Working Principle of Eddy Current Separator

Operational Mechanism of Eddy Current Separator

The separator uses a high-speed rotating magnetic rotor inside a non-metallic drum. As mixed waste travels across the drum, non-ferrous metals (e.g., aluminum, copper) passing through the rapidly changing magnetic field induce eddy currents. These currents create a secondary magnetic field that repels the metal pieces, ejecting them from the main waste stream. Non-metallic materials continue along the normal trajectory due to gravity, achieving automatic separation.

Applications of Eddy Current Separator

Eddy current separators are versatile and used in various industries to improve material separation efficiency.

Common applications include:

Recycling: Recovering non-ferrous metals from municipal solid waste, electronic scrap, and automotive shredder residue.
Mining: Extracting valuable metals from ore and mineral processing operations.
Manufacturing: Ensuring product purity by removing metal contaminants from raw materials and finished products.
Construction: Separating non-ferrous metals from construction and demolition waste for recycling and reuse.
Environmental Cleanup: Removing metal contaminants from soil and water in environmental remediation projects.

Benefits of Using Eddy Current Separator

Implementing eddy current separators in material separation processes offers numerous benefits:

Increased Efficiency: Enhances the speed and accuracy of non-ferrous metal separation, reducing the need for manual sorting.
Improved Material Recovery: Increases the recovery rate of valuable metals, supporting recycling efforts and reducing waste.
Cost Savings: Reduces labor costs and operational expenses through automated and efficient sorting.
Enhanced Product Quality: Produces cleaner, higher-quality separated materials, improving the value of recycled products.
Environmental Impact: Supports sustainable waste management practices by increasing recycling rates and reducing landfill usage.

Get in Touch with Us!

Please feel free to leave a message.

We will reply you in 24 hours.

+86 18738194110
kezhang894@gmail.com
Feilong Road Industrial Park, Xingyang, Zhengzhou, Henan, China
