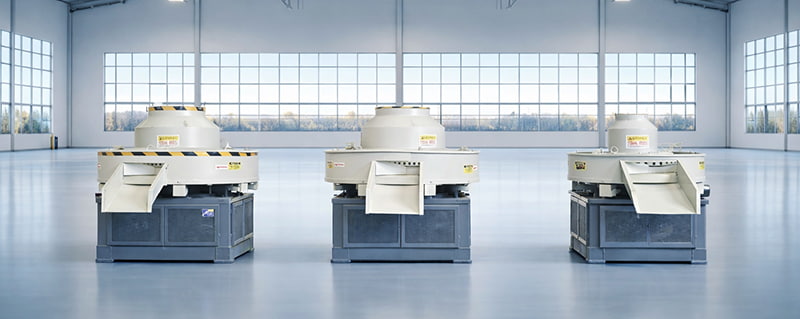

RDF Making Machine

Working Principle of RDF Making Machine

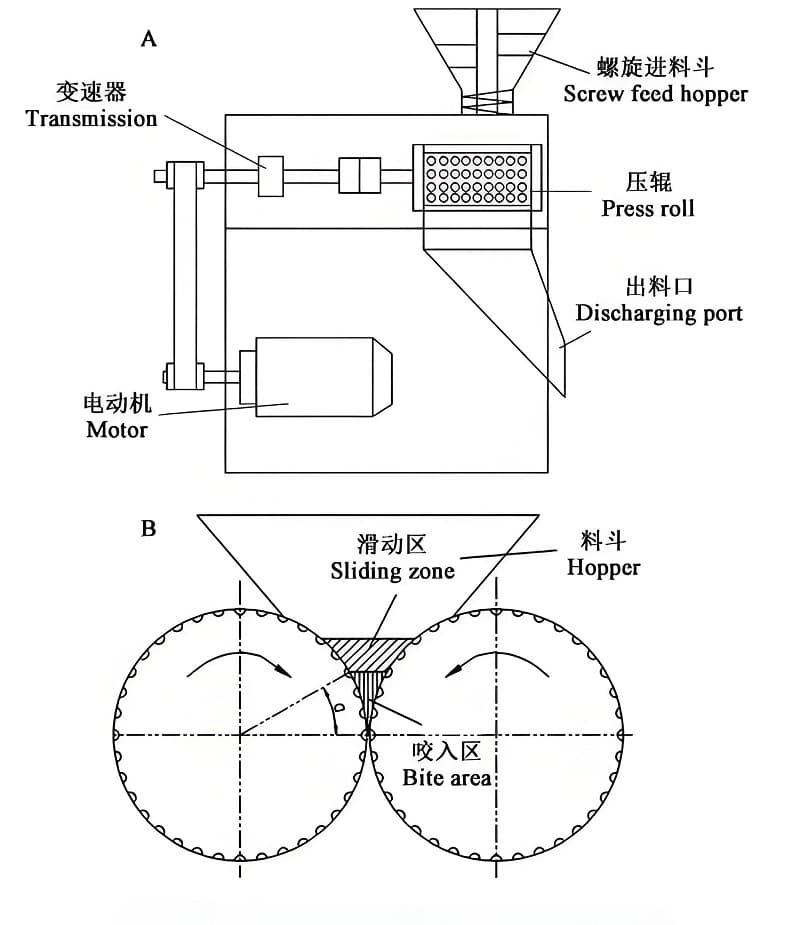

Operational Mechanism of RDF Making Machine

The RDF (Refuse Derived Fuel) Making Machine converts solid waste into a homogeneous, high-calorie fuel pellet through a sequential process of preparation, compression, and formation:

• Material Preparation & Feeding：Pre-shredded waste (e.g., plastic, paper, biomass) is uniformly fed into a hopper. An optional drying system may first reduce moisture content to the optimal range (10-15%) to ensure compaction efficiency and prevent mold.
• Conveying & Conditioning：A screw conveyor transports the material to a conditioning chamber. Here, binders may be added (or the material is heated) to increase plasticity, ensuring the diverse waste components adhere together during compression.
• High-Pressure Compaction：The core mechanism involves a rotary drum with molds (or a piston press) driven by a heavy-duty motor and reducer. Material is forced into these molds under extreme hydraulic or mechanical pressure. This compression densifies the loose waste into a solid, cylindrical shape.
• Extrusion & Cutting：The compacted material is extruded through the molds. A synchronized cutting knife trims the extrudate into uniform RDF pellets of a specific length (typically 30-100mm) as it exits the drum.
• Cooling & Discharge：The hot, newly formed pellets (warm from compression heat) pass through a discharge chute. They are then typically air-cooled to room temperature, which hardens the pellets for stable storage, transportation, and combustion in boilers or cement kilns.

Applications of RDF Making Machine

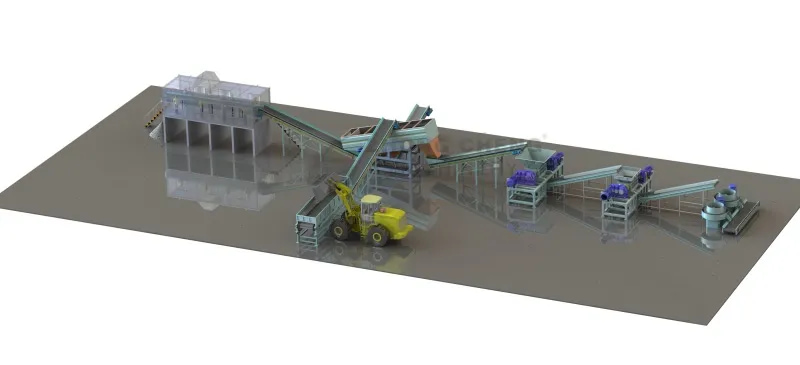

The primary application of RDF Making Machines is within the waste management and energy sectors. They are a central component of Mechanical-Biological Treatment (MBT) plants and dedicated waste-to-energy facilities. The RDF pellets or briquettes produced are primarily used as a substitute fuel in energy-intensive industries. Cement manufacturing plants are major consumers, as RDF can be fired in cement kilns, providing the high temperatures needed for clinker production while reducing the plant’s coal consumption and associated carbon footprint.

Beyond the cement industry, RDF finds application in dedicated power plants designed to generate electricity from waste. It is also used in district heating systems and in various industrial boilers across sectors like paper and pulp or steel manufacturing. Furthermore, by converting waste into a standardized fuel, these machines enable the long-distance transport of energy recovered from waste to regions that need it, optimizing resource recovery on a broader geographical scale and providing a sustainable disposal solution for municipalities.

Benefits of Using RDF Making Machine

Implementing RDF Making Machine in waste sorting processes offers numerous benefits:

• Waste Volume Reduction & Landfill Diversion：Compacts diverse solid wastes (plastics, paper, biomass) into dense pellets, reducing landfill volume by up to 80-90% and extending landfill lifespans significantly.
• Energy Recovery & Revenue Generation：Converts non-recyclable waste into a high-calorie fuel (RDF) with stable combustion properties. This fuel can offset fossil fuel costs in cement kilns, power plants, or industrial boilers, or be sold as a commodity.
• Lower Logistics & Handling Costs：Dense, uniform RDF pellets are far easier and cheaper to transport and store than loose waste. Their consistent size improves automated feeding efficiency and reduces dust emissions during handling.
• Environmental Compliance & Sustainability：Helps businesses meet strict waste disposal regulations. By replacing coal with RDF, it reduces reliance on fossil fuels and lowers overall carbon footprints, supporting circular economy goals.

Parameters of RDF Making Machine
