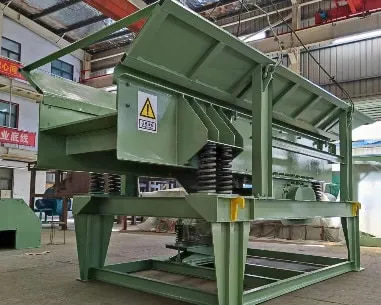

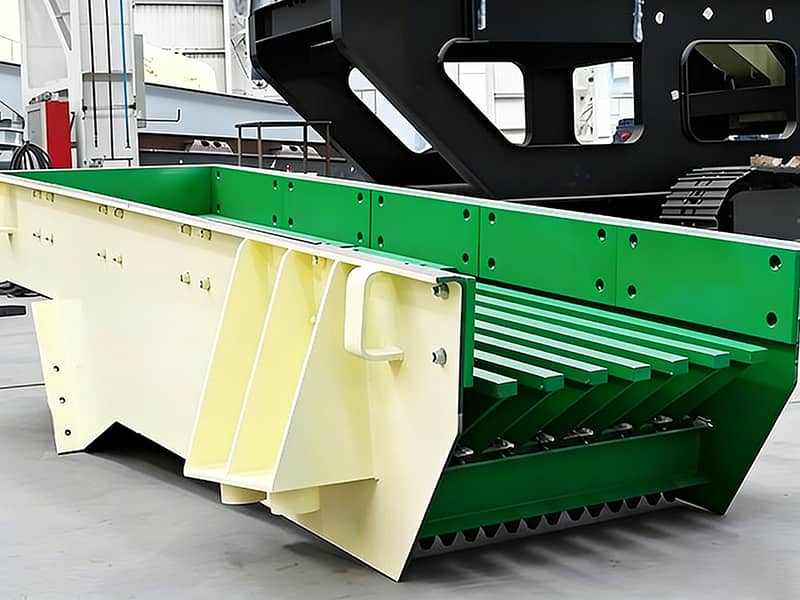

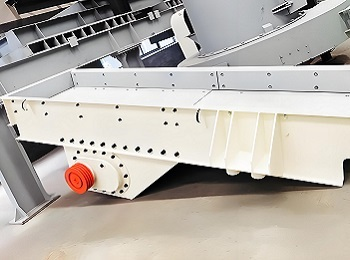

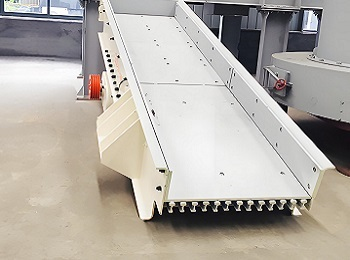

Vibrating Feeder

Working Principle of Vibrating Feeder

Operational Mechanism of Vibrating Feeder

The vibrating feeder operates using an electromagnetic or motor-driven vibrator mounted on a flexible spring base. When activated, it generates high-frequency, small-amplitude vibrations that transfer to the trough. This creates a microscopic throwing motion, causing material to slide or bounce forward in a continuous, controlled flow. The amplitude and frequency are adjustable via a controller to precisely regulate feed rate. A shock-absorbing spring system isolates vibrations from the foundation, ensuring stable operation and protecting the supporting structure.

Applications of Vibrating Feeder

Chain Plate Conveyor are versatile and used in various industries to improve material separation efficiency.

Municipal solid waste products are items that are discarded by the public and need to be either manually or mechanically sorted for further processing at a materials recovery facility, also known as an MRF, or sent to landfills. The composition of MSW material can vary greatly from municipality to municipality based on the development of each municipality’s recycling system. Some municipalities require their citizens to sort their waste products, while other municipalities use a single-stream recycling system or a mostly single-stream recycling system. Single-stream recycling refers to a system that does not require the sorting and separation of recyclable materials. In single-stream recycling, both the collection and processing systems are designed to handle fully commingled mixtures of recyclables. Using single-stream recycling means that all recyclable materials are placed into one bin for collection by a single truck, including paper, plastics, cardboard, glass, aluminum, metals and more. Recyclables are then transported to a materials recovery facility, or MRF, where they are separated, sorted and sold for reuse.

Benefits of Using Vibrating Feeder

Implementing Vibrating Feeder in material handling processes offers numerous benefits:

• Accurate Flow Control: Enables precise adjustment of material flow rate, ensuring consistent feeding for batching, weighing, or processing operations.
• Reduced Material Waste: Minimizes spillage and breakage with its controlled, uniform flow, protecting both bulky and fragile materials during transfer.
• High Energy Efficiency: Requires minimal power to operate, especially electromagnetic models, resulting in lower operational costs compared to mechanical feeders.
• Self-Cleaning Action: The vibratory motion helps prevent material buildup and clogging, making it ideal for sticky, wet, or irregularly sized materials.
• Low Maintenance: Its simple design with few moving parts ensures minimal downtime and low upkeep costs, even in harsh industrial environments.

Parameters of Vibrating Feeder
