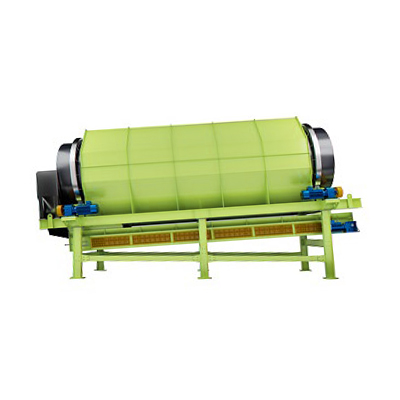

Trommel Screen

Working Principle of Trommel Screen

Operational Mechanism of Trommel Screen

• Material feeding: The material enters the interior of the Trommel Screen through the feeding port.
• Screening process: The drum begins to rotate, and the material is subjected to centrifugal force on the surface of the drum while moving along the length direction of the drum. Smaller particles will pass through the sieve or sieve plate, while larger particles are blocked on the screen.
• Grading and Separation: Materials are classified into different size grades based on the size of the sieve or sieve plate. Smaller particles pass through sieve holes or sieve plates, while larger particles are retained on the surface of the drum.
• Discharge: After screening, materials of different sizes move forward along the length direction of the drum and are discharged from the Trommel Screen through the discharge port.

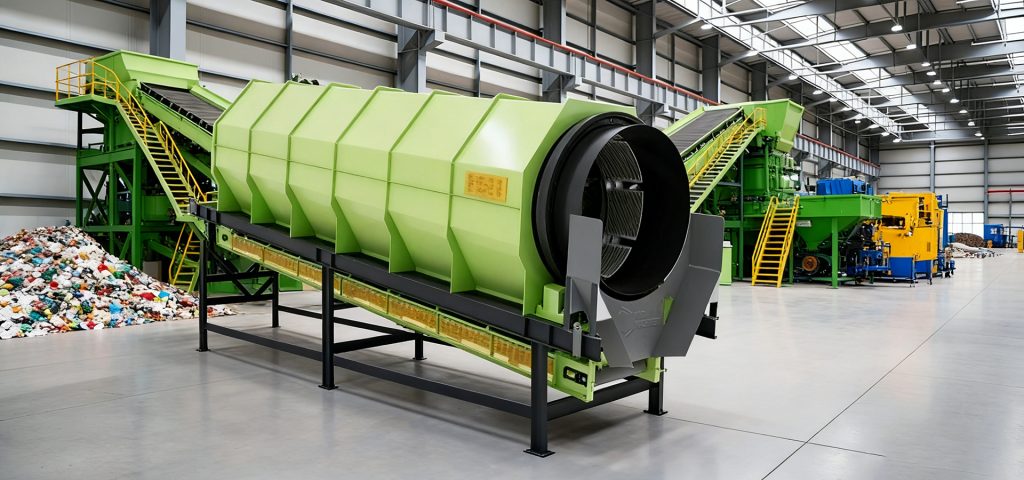

The Trommel Screen is mainly composed of a screen box, a motor, a reducer, a drum, and a bracket. The material enters the screening box from the feeding port, and the drum begins to rotate. The material continuously flips and rolls inside the drum, thus achieving the screening of the material.

The material continuously rolls and scatters inside the cylinder as it rotates, and gradually separates through the sieve holes under the action of gravity and centrifugal force. The size of the sieve holes can be adjusted according to actual needs to meet the screening requirements of materials with different particle sizes. Larger particles are filtered out by the mesh inside the drum, while smaller particles fall through the mesh into the discharge outlet below.

The screen mesh of a Trommel Screen is generally composed of multiple layers of screens with different aperture sizes to achieve separation of materials with different particle sizes. Meanwhile, the Trommel Screen can also adjust the speed and inclination angle of the drum as needed to meet the screening requirements of different materials.

Applications of Trommel Screen

Trommel screens are used in a wide range of industries due to their versatility and effectiveness. Common applications include:

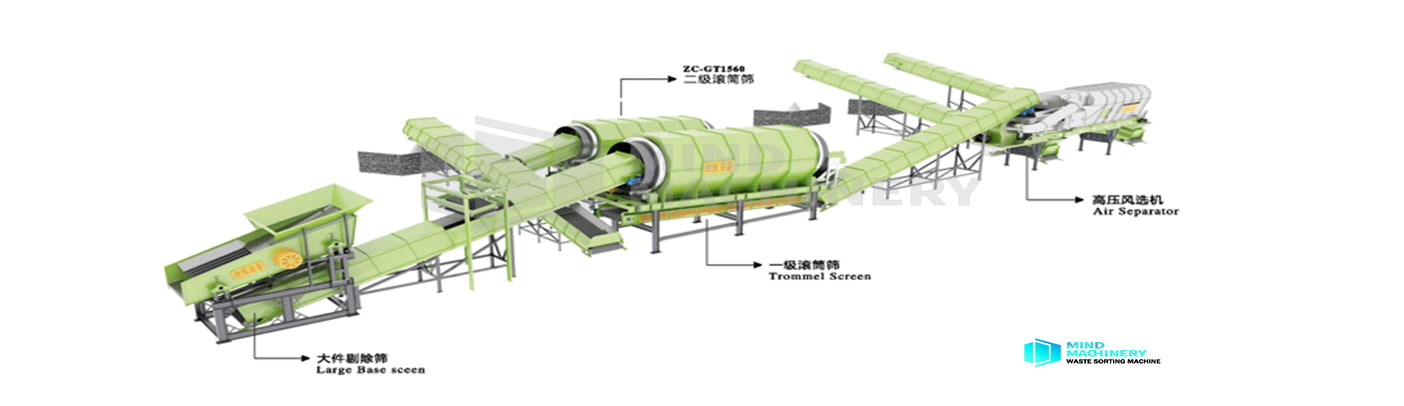

• Recycling: Sorting and separating recyclables such as plastics, metals, and glass by size for efficient processing.
• Mining: Separating valuable minerals from ore based on size, improving the efficiency of downstream processing.
• Waste Management: Screening and separating different types of waste materials, facilitating more efficient recycling and disposal.
• Agriculture: Separating organic materials, such as compost and topsoil, from unwanted debris.

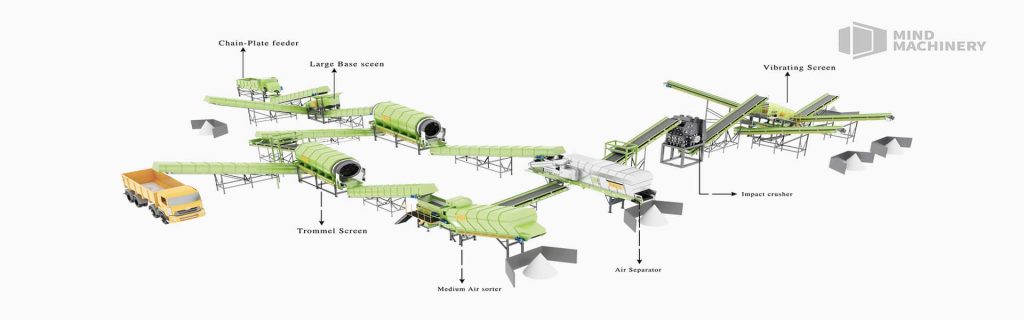

• Construction: Sorting construction and demolition debris, such as rubble, sand, and gravel, by size.

Benefits of Using Trommel Screen

Implementing trommel screens in material separation processes offers numerous benefits:

• Increased Efficiency: Enhances the speed and accuracy of material separation, reducing manual sorting time.
• Improved Product Quality: Ensures consistent and high-quality separation of materials, leading to better end products.
• Cost Savings: Reduces labor costs and increases operational efficiency, leading to overall cost savings.
• Scalability: Easily integrated into existing operations and can be scaled up as processing needs grow.
• Environmental Impact: Efficient material separation supports recycling efforts, reducing waste and conserving resources.

Parameters of Trommel Screen

Customized according to your requirements
