Chain Plate Conveyor

Ideal for heavy/bulky loads, it ensures stable, high-torque conveyance with low wear, excelling in harsh industrial environments with minimal downtime.

What is an Chain Plate Conveyor?

A chain plate feeder is a type of material handling equipment that uses a series of connected plates, driven by a chain, to transport bulk materials. These feeders are designed to handle heavy loads and provide consistent feed rates, making them ideal for industries that require reliable material transport.

The sleeve roller chain drives the sprocket cyclic reciprocating motion provides traction power, and the metal plate is used as the carrier to transport materials. It has strong impact resistance and is suitable for all kinds of complex garbage.

Product Details of Chain Plate Conveyor

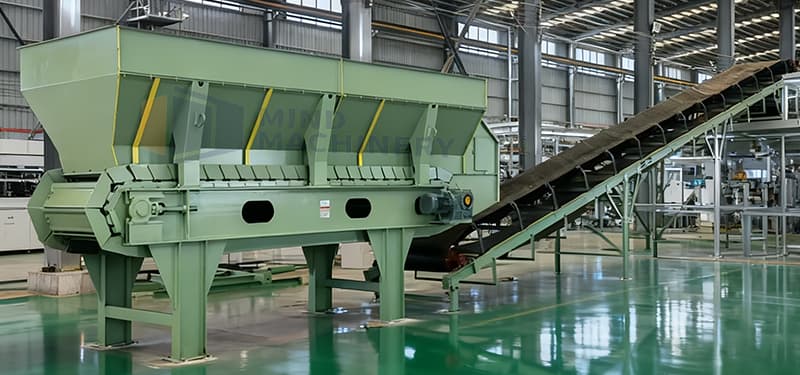

High-Efficiency Chain Plate Conveyor for Waste Recycling Centers

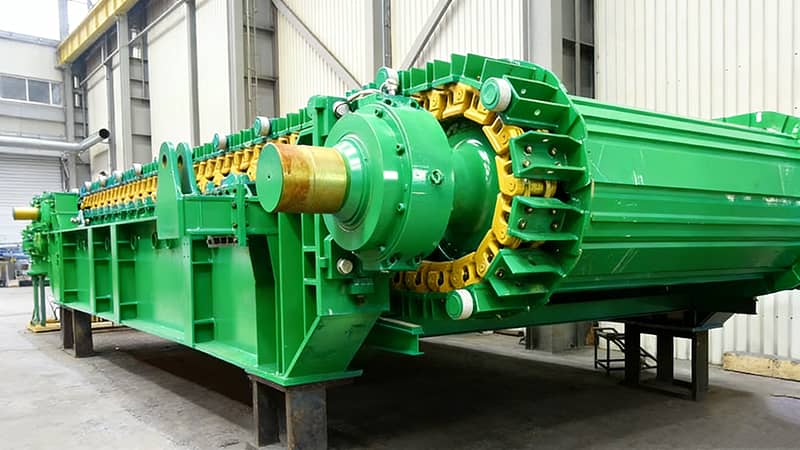

Chain plate conveyor is composed of power unit, transmission shaft, roller, tensioning device, chain wheel, chain, bearing, chain plate, etc. It uses a series of chains fixed on the traction chain to provide traction, and uses metal plate as the carrier to guide materials to be transported along the horizontal or inclined direction.

Key Features

Eddy current separators are known for their precision and efficiency. Key features include:

Heavy-Duty Construction: Built from high-strength materials to withstand heavy loads and harsh operating conditions.
Consistent Feed Rate: Designed to deliver a steady and controlled flow of materials, ensuring uniform feed rates.
Customizable Design: Available in various sizes and configurations to meet specific application requirements.
Low Maintenance: Engineered for durability and minimal maintenance, reducing operational downtime.
Versatility: Suitable for transporting a wide range of materials, including abrasive and high-temperature substances.

Video Introduction of Wind Sifter

Large transportation volume, high stability, convenient operation, strong adaptability, and flexible layout

The chain plate conveyor enables stable, linear transport of heavy or bulky loads at adjustable speeds, with guides or side guards ensuring material alignment. It suits harsh industrial environments due to its robust design, minimizing jams and ensuring consistent throughput.

Characteristics of Chain Plate Conveyor

Heavy-Duty Capacity

Designed to handle bulky, heavy, or abrasive materials （e.g., metal parts, foundry sand）that would damage lighter conveyors.

High Durability

Constructed with robust metal plates and chains, ensuring a long service life and resistance to wear in harsh industrial environments.

Versatile Layouts

Highly flexible in design, supporting horizontal, inclined, declined, or complex multi-directional paths to fit factory floor plans.

Stable & Reliable

Provides a flat, rigid surface for stable product movement, preventing jams and ensuring consistent throughput for assembly lines or heavy material transport.

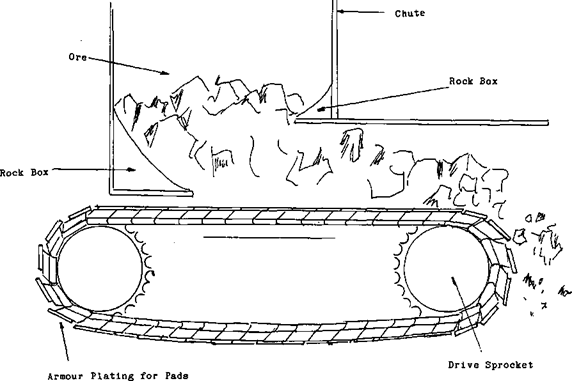

Working Principle of Chain Plate Conveyor

Operational Mechanism of Chain Plate Conveyor

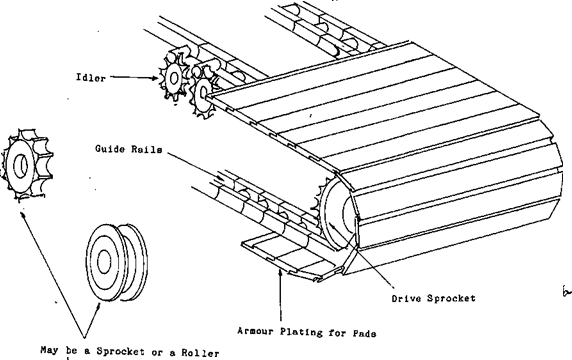

The chain plate conveyor operates on a traction-drive principle. A motor powers a drive sprocket, which rotates heavy-duty roller chains. These chains are bolted to interlocking metal plates, forming a continuous, flat conveying surface. As the chains move along fixed guide rails, the plates carry materials forward. A tail sprocket maintains chain tension, while optional side guides prevent load displacement. Friction between the drive sprocket and chains ensures efficient power transmission, enabling steady, high-capacity transport of heavy or irregularly shaped items with minimal slippage.

Applications of Chain Plate Conveyor

Chain Plate Conveyor are versatile and used in various industries to improve material separation efficiency.

Common applications include:

Mining: Transporting ore, coal, and other mined materials from extraction sites to processing facilities.
Construction: Handling bulk materials such as sand, gravel, and cement in construction projects.
Recycling: Feeding recyclable materials, including metals, plastics, and glass, into processing systems.
Power Generation: Delivering coal, biomass, and other fuels to boilers and furnaces in power plants.
Manufacturing: Transporting raw materials and components in various manufacturing processes.

Benefits of Using Chain Plate Conveyor

Implementing chain plate feeders in material handling processes offers numerous benefits:

Enhanced Efficiency: Streamlines material transport, reducing handling time and labor costs.
Increased Reliability: Provides consistent and reliable operation, minimizing disruptions in the workflow.
Cost Savings: Reduces maintenance and operational costs due to durable construction and low maintenance requirements.
Improved Safety: Reduces the need for manual handling of heavy materials, enhancing workplace safety.
Environmental Impact: Efficient material handling reduces energy consumption and waste, supporting sustainability efforts.
